HM-ZD6418D Automatic Luxury Box Making Machine

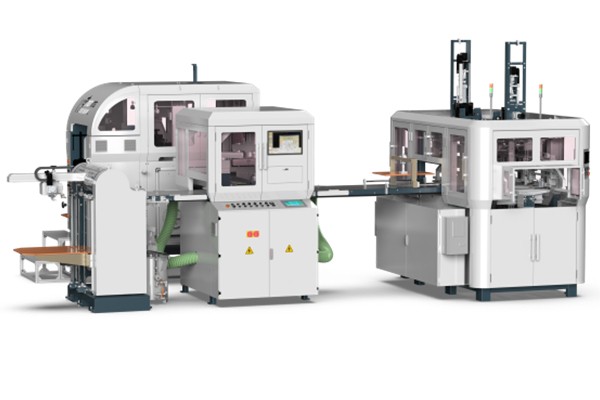

HM-ZD6418D High Speed Automatic Rigid Box Making Machine ( Luxury box Making machine)

Functional description：

HM-ZD6418D High Speed Automatic rigid box machine is suitable to make various types of rigid boxes, luxury boxes for mass production, such as cellphone boxes, gift boxes, cosmetic boxes, watch boxes, slanting boxes, etc. Size range is bigger than ZD350D, more suitable for current packaging market. Machine's appearance is new design which is safer and more  beautiful.

HM-ZD6418D adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper ,feed greyboard, tape four corners, spot greyboard, lift box,wrap box, fold corner edges, and form box.

The feeder, the gluer and the conveyor are driven by well known servos which have continuously variable transmission,and enjors  high accuiacy,easy adjusting,and less time consumption.the spot unit adopts germany camera and spotting accuiacy to ±0.05mm.The forming unit employs Germany REXROTH linear and virtual cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and cirner edges.

Features and function：

1. Suitable for all kinds of automatic production lines of cardboard world cover

2. Set the function parameters of the whole computer

3. Fault diagnosis function

4. Automatic feeding function of tissue paper and ash feeding board

5.24 hours control glue preheating function

6. 300 product formulations are built into the molding machine

7. Separate human-machine interface control for four-corner heating

8. The whole machine adopts servo control system

9. Image positioning system and robot grasping and positioning (error ±0.05mm)

10. Automatic carton lifting and drawing device

11. Automatic glue viscosity control system (optional)

12. It can be modified to use the ash palletizing machine (optional)

13. Short side ears can be matched or butt left and right, more suitable for high-grade carton production

14. The innovative new gluing method can be used for both white glue and hot melt glue

15. Can produce face paper slotting products, and complete the edge folding ear at one time.

Technical parameters：

Note:
1.The max. size and the min. size of box are determined by the max. and min. size of cover paper.
A( Min.)≤W+2H+2T+2R≤A(Max.)；B( Min.)≤L+2H+2T+2R≤B(Max.)
Max. Length, width and high can’t reach max. at the same time. Min. Length, width and high can’t reach min. at the same time.
2.The production speed of the rigid box maker is determined by the box size, paper and cardboard materials.
3.We don’t provide air compressor. (8 atm=0.808MPA , 7.5KW compressor with dryer is needed)

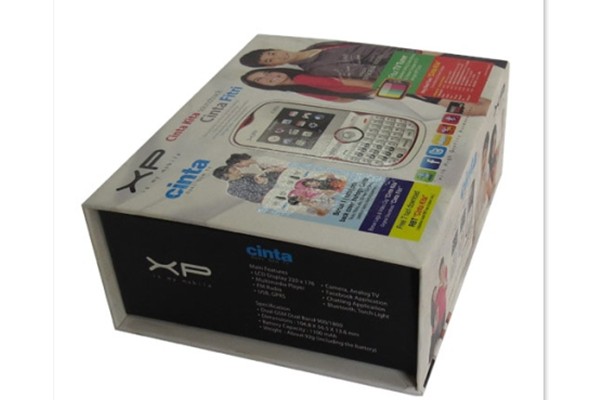

Box Appplication:
