HM-ZD6418G Cosmetic rigid box making machine

HM-ZD6418G Cosmetic rigid box making machine

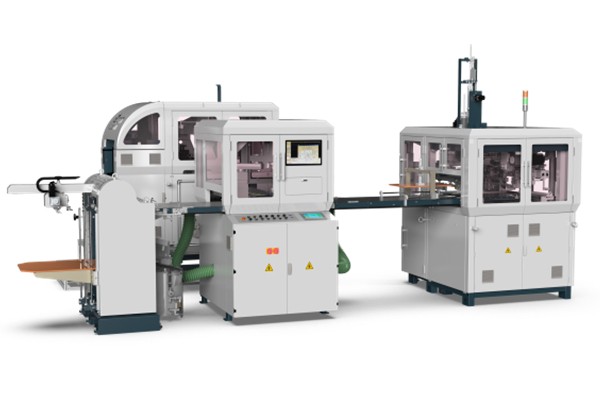

HM-ZD6418G/HM-ZD6418C-G Automatic Rigid Box Machine(Cosmetic rigid box making machine) is suitable to make various big size premium boxes’ mass production, such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes,slanting (option),slip case boxes (option), clamshell box（option）etc. Size range is bigger, more suitablefor current packaging market. Machine' appearance is new design which is safer and more beautiful.

HM-ZD6418G/HM-ZD6418C-G adopts PLC and man-machine control, camera tracing system, andcan automatically feed cover paper, feed greyboard, paste four corners, spot greyboard, lift box, , foldcorner edges and wrap box.

The feeder, the gluer and the conveyor are driven by well known servos which have continuouslyvariable transmission, and enjoys high accuracy, easy adjusting, and efficiency. The spotting unit adoptscamera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to± 0.05mm, and its spotting and adjusting is more faster. The forming unit employs Japan THK linearslider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movementand enlarge the folding-in depth and corner edges.

Features and Function:

1. Suit to all kinds of rigid boxes in mass production.

2. Parameter adopts computer digital setting.

3. Auto error stop and display.

4. Automatically feed paper and greyboard.

5. 24-hour control for glue pre-heating.

6. Wrapper can input 300 product formulas.

7. Corner pasting part with independent man-machinecontrol and heating system

8. Adopts servo control system.

9. Spotter by camera tracing system and SCARA (SelectiveCompliance Assembly Robot Arm) (spottingaccuracy±0.05mm).

10. Wrapper can automatic lift amd wrap box.

11. Automatic control system for glue viscosity(optional).

Technical parameters：

Note:
1.The max. size and the min. size of box are determined by the max. and min. size of cover paper.
A( Min.)≤W+2H+2T+2R≤A(Max.)；B( Min.)≤L+2H+2T+2R≤B(Max.)
Max. Length, width and high can’t reach max. at the same time. Min. Length, width and high can’t reach min. at the same time.
2.The production speed of the rigid box maker is determined by the box size, paper and cardboard materials.
3.We don’t provide air compressor. (8 atm=0.808MPA , 7.5KW compressor with dryer is needed)

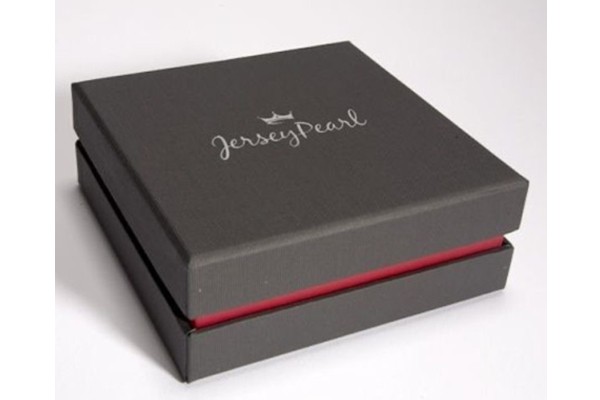

Box Appplication:
