HM-ZD6418K Automatic Rigid Box Making Machine

HM-ZD6418K Automatic Rigid Box Making Machine ( MEMORY SYSTEM)

Hongming HM-ZD6418K Automatic Smart rigid box machine is is suitable to make various types of rigid boxes for mass production. Such as cellphone boxes, gift boxes, cosmetic boxes, watch boxes, shoe box, chocolate boxes etc. Size range is bigger than ZD350K, more suitable for current packaging market. Machine s appear-ance is new design which is more safe and beautiful.

HM-ZD6418K adopts PLC and man-machine control, camera tracing system with Yamaha Robot, and can automatically feed cover paper , feed greybeard, tape four corners, positioning the greybeard, lift box, wrap and form box.

The feeder, the gluer and the conveyor are driven by well known servos which have continuously variable transmission and enjoys high accuracy, easy adjusting. and less time consumption.

The positioning unit adopts Germany camera  and spotting accuracy to ±0.05mm.

The forming unit employs full servo control and virtual cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges. 300 Formulas can be storage, easy for repeat size production.

1-2 operators can run the machine under production 1200-1800 pcs/ hour .

Features and function:

1. Suit to all kinds of rigid boxes in mass production

2. Computer control for auto mould changing(optional)

3. Auto error stop and display

4. Automatically feed paper and greybeard

5. 24-hours control for glue pre-heating

6. Wrapper can input 300 product formula

7. Automatically cut and heat tape to paste the greyboard box's quad stayer (four corners), with independent  man-machine control

8. Adopt servo and PLC control

9. Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm) (spotting inaccuracy±0.05mm)

10. Wrapper can automatically and continually lift box,wrap paper, fold corner edge, fold in and form box

11.Automatic control system for glue viscosity(optional)

12. Remodel the taping m/c into Board assembling m/c (optional).

13.Suit to long paper ear box production.

14.Unique innovate glue application suit to both hot glue and cold glue.

15.Suit to groove paper production.

16.. Full servo control with memory system ( 300 fomulas can be stock)

Technical parameters:

Note:
1.The max. size and the min. size of box are determined by the max. and min. size of cover paper.
A( Min.)≤W+2H+2T+2R≤A(Max.)；B( Min.)≤L+2H+2T+2R≤B(Max.)
Max. Length, width and high can’t reach max. at the same time. Min. Length, width and high can’t reach min. at the same time.
2.The production speed of the rigid box maker is determined by the box size, paper and cardboard materials.
3.We don’t provide air compressor. (8 atm=0.808MPA , 7.5KW compressor with dryer is needed)

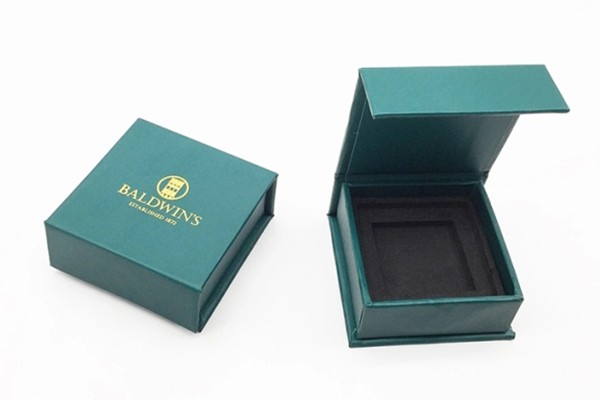

Box Appplication:
